API 5L Grade B Pipe Fittings

API 5L B is the material for seamless and welded pipe cap for gas, oil and water transportation, some pipe fittings are also made by this carbon steel such as pipe nipples.

API 5L pipe fittings usually are applied in high temperature and high pressure applications, they have good mechanical performance, excellent weldability and cost advantages. We offer PLS1 and PLS2 API 5L B pipe fittings for your selection.

API 5L B Properties

API-5L-B Chemical Composition, Max %

API 5L B Mechanical Properties

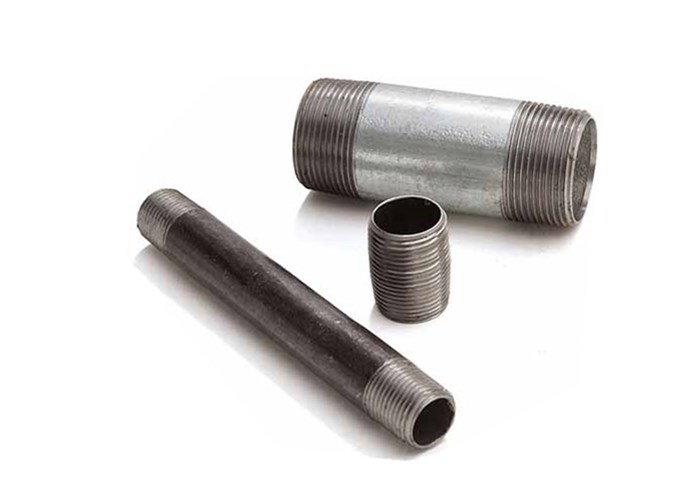

Features of Pipe Nipple

• Material usually keep in line with the pipeline
• Two Ends are available in threaded, plain and beveled, which can be different type.
• Wall thickness is the same as pipeline
• Length is necessary

Carbon Steel Forged Fittings Specification

Zizi supplies full size range carbon steel forged pipe fittings in different material grades.

Products

• Socket Weld Pipe Fittings
• Threaded Pipe Fittings
• 45° & 90° Elbow
• Equal Tee & Reducing Tee
• Half Coupling & Full Coupling
• Pipe Cap & End Cap
• Threaded Nipple & Swage Nipple
• Threadolet, Weldolet & Sockolet
• Union
• Bushing
• Plug

Standard

ASME B16.11, BS 3799, MSS SP 95 for Nipples, MSS SP 97 for Olets.

Dimension

Mostly are 1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

Pressure

Class 2000, 3000, 6000, 9000, Sch40, Sch80, Sch160, XXS

Carbon Steel Materials

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Coating

Galvanized, Fluorocarbon, Anti-rust Oil, As Request.

Inspection of Carbon Steel Pipe Nipple

1. Check The Surface

Marking & Appearance, eyes check and hand touch.

2. Measure The Size

Measure the size of diameter, length and thread length

3. Test The Thread

Test the male thread by go/no go gauge.

4. Compared to the tolerance.

Third Party Inspection

Such as BV, SGS, LR, DNV, ABS
